AFRICAST

Tidy time series & forecasting in R

Forecasting with regression

Representing temporal structure with regressors

Session 5 of 10

workshop.f4sg.org/africastForecasting for Social Good

The linear model with time series

Regression models

• To explain

• To forecast

• Simple linear regression model (SLR)

• Multiple linear regression model (MLR)

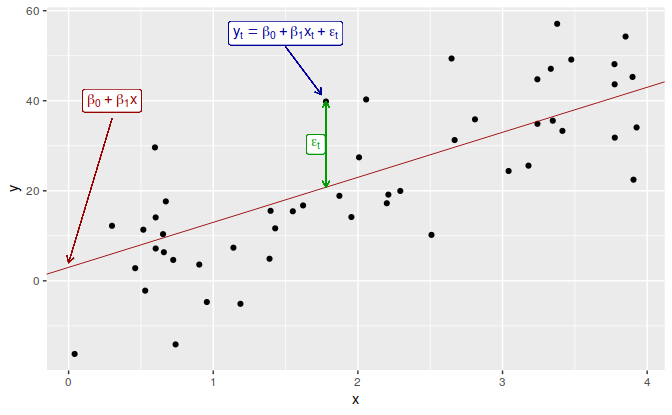

SLR model in theory

Regression model allows for a linear relationship between the forecast variable \(y\) and a single predictor variable \(x\).

\[ y_t = \beta_0 + \beta_1 x_{t} + \varepsilon_t. \]

• \(y_t\) is the variable we want to predict: the “response” variable
• Each \(x_{t}\) is numerical and is called a “predictor”
• \(\beta_0\) and \(\beta_1\) are regression coefficients

SLR model in practice

In practice, of course, we have a collection of observations but we do not know the values of the coefficients \(\beta_0\), \(\beta_1\). These need to be estimated from the data.

\[ \hat{y}_t = \hat\beta_0 + \hat\beta_1 x_{t}. \]

• \(\hat{y}_t\) is the fitted value of the response
• Each \(x_{t}\) is a “predictor”
• \(\hat\beta_0\) is the estimated intercept
• \(\hat\beta_1\) is the estimated slope

What is the best fit

• There are many ways that a straight line can be laid on the scatter
• Best known criterion is called Ordinary Least Squares (OLS)

Estimation of the model

Least squares chooses the values of \(\beta_0\) and \(\beta_1\) which minimise

\[ \sum_{t=1}^T e_{t}^2 = \sum_{t=1}^T (y_{t} - \beta_{0} - \beta_{1}x_{t})^2. \]

• This is called least squares estimation because it gives the smallest value of the sum of squared errors.
• Finding the best estimates of the coefficients is often called fitting the model to the data.
• We refer to the estimated coefficients using the notation \(\hat\beta_{0},\hat\beta_{1}\).

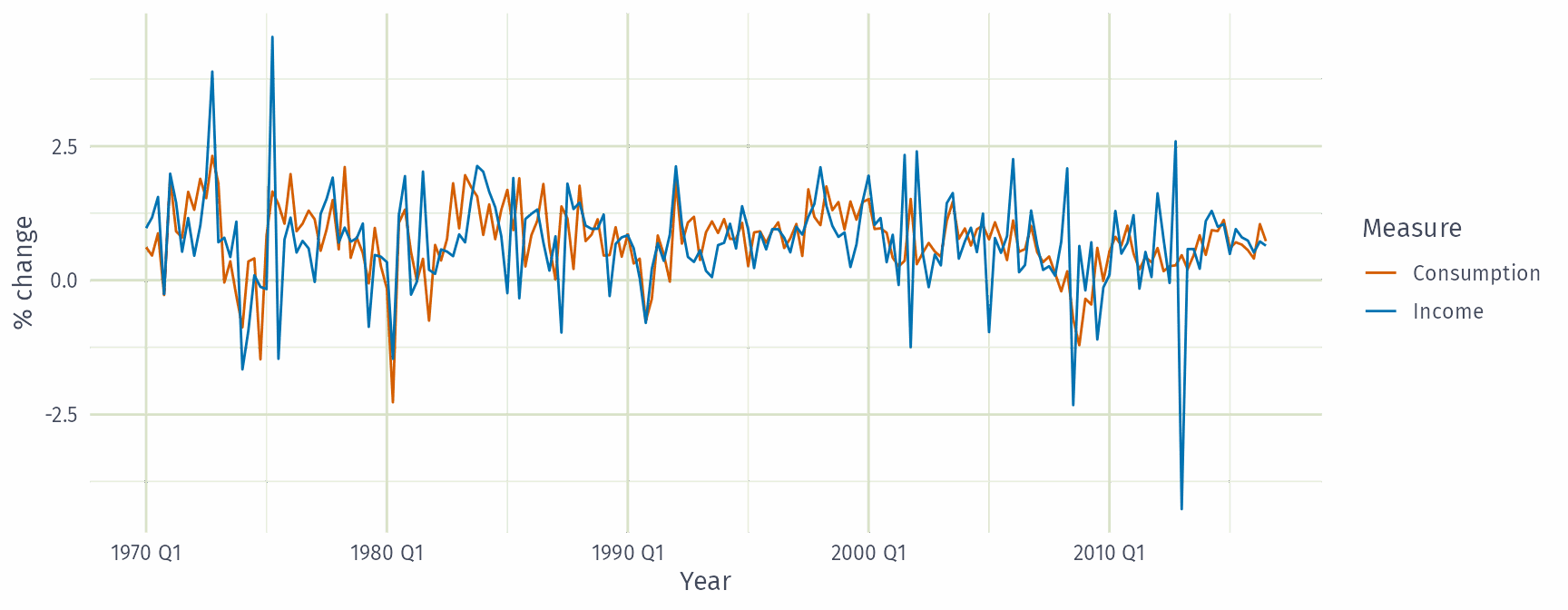

Example: US consumption expenditure

us_change |>
  pivot_longer(c(Consumption, Income), names_to = "Measure", values_to = "Change") |>
  autoplot(Change) +
  labs(x = "Year", y = "% change")

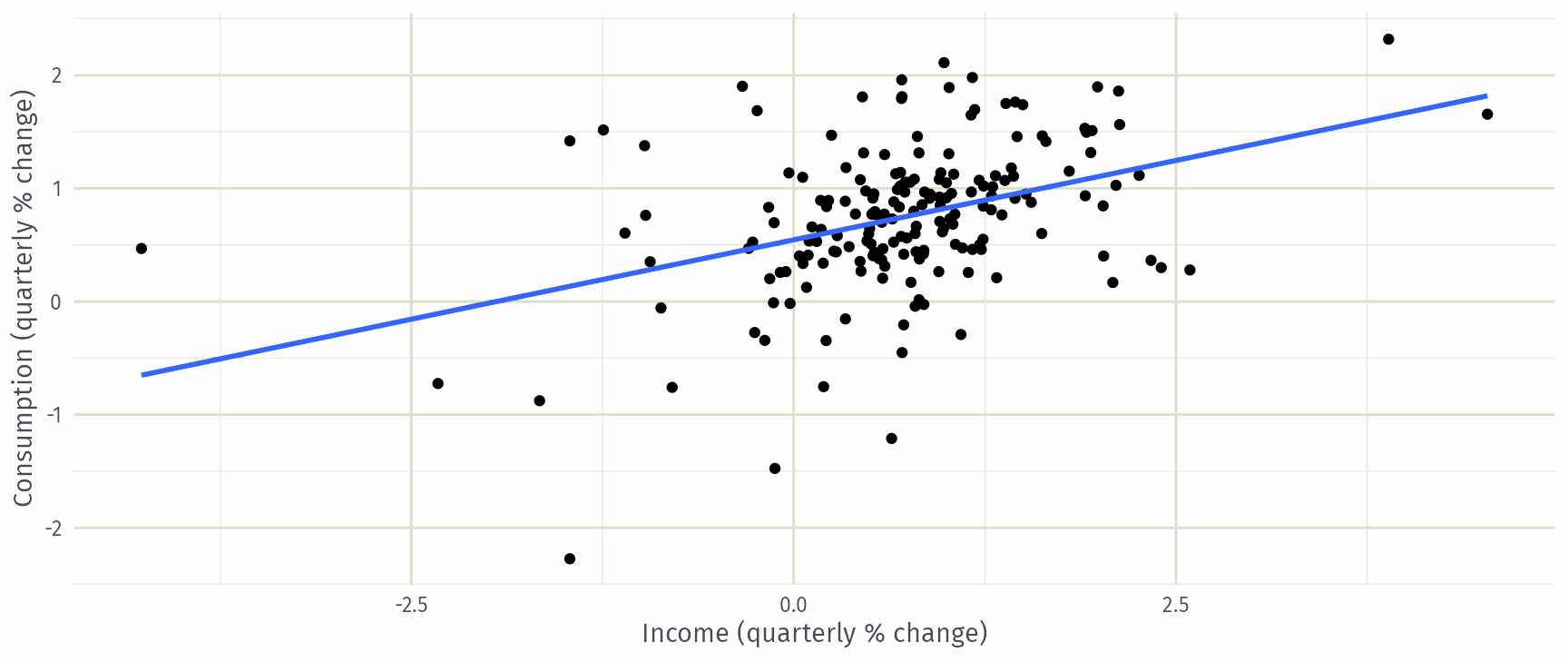

Example: US consumption expenditure

Example: US consumption expenditure

fit_income <- us_change |>
  model(lm = TSLM(Consumption ~ Income))
report(fit_income)

Series: Consumption
Model: TSLM

Residuals:
   Min     1Q Median     3Q    Max
-2.408 -0.318  0.026  0.300  1.452

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   0.5451     0.0557    9.79  < 2e-16 ***
Income        0.2806     0.0474    5.91  1.6e-08 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.603 on 185 degrees of freedom
Multiple R-squared: 0.159,  Adjusted R-squared: 0.154
F-statistic:   35 on 1 and 185 DF, p-value: 2e-08

Interpretation

A 1 percentage point rise in income growth goes with a 0.28 point rise in consumption growth.

Income alone explains little: \(R^2 = 0.16\).

Multiple regression

• In multiple regression there is one variable to be forecast and several predictor variables.
• The basic concept is that we forecast the time series of interest \(y\) assuming that it has a linear relationship with other time series \(x_1\), \(x_2\), …, \(x_k\)
• We might forecast daily A&E attendance \(y\) using temperature \(x_1\) and GP visits \(x_2\) as predictors.

How many predictors?

You can add as many as you want but be aware of:

• Over-fitting
• Multicollinearity

Multiple regression and forecasting

\[ y_t = \beta_0 + \beta_1 x_{1,t} + \beta_2 x_{2,t} + \cdots + \beta_kx_{k,t} + \varepsilon_t. \]

• \(y_t\) is the variable we want to predict: the “response” variable

• Each \(x_{j,t}\) is numerical and is called a “predictor”. They are usually assumed to be known for all past and future times.

• The coefficients \(\beta_1,\dots,\beta_k\) measure the effect of each predictor after taking account of the effect of all other predictors in the model.

  • That is, the coefficients measure the marginal effects.

• \(\varepsilon_t\) is a white noise error term

Estimation of the model

Least squares chooses the values of \(\beta_{0},\dots,\beta_{k}\) which minimise

\[ \sum_{t=1}^T e_{t}^2 = \sum_{t=1}^T (y_{t} - \beta_{0} - \beta_{1}x_{1,t} - \cdots - \beta_{k} x_{k,t})^2. \]

• This is called least squares estimation because it gives the smallest value of the sum of squared errors
• Finding the best estimates of the coefficients is often called fitting the model to the data
• We refer to the estimated coefficients using the notation \(\hat\beta_{0},\dots,\hat\beta_{k}\).

Useful predictors in linear regression

Linear trend \[ x_t = t \]

• \(t=1,2,\dots,T\)
• Strong assumption that trend will continue.
• use special function trend()

Seasonality

• Seasonality will be considered based on the interval of index
• use special function season()

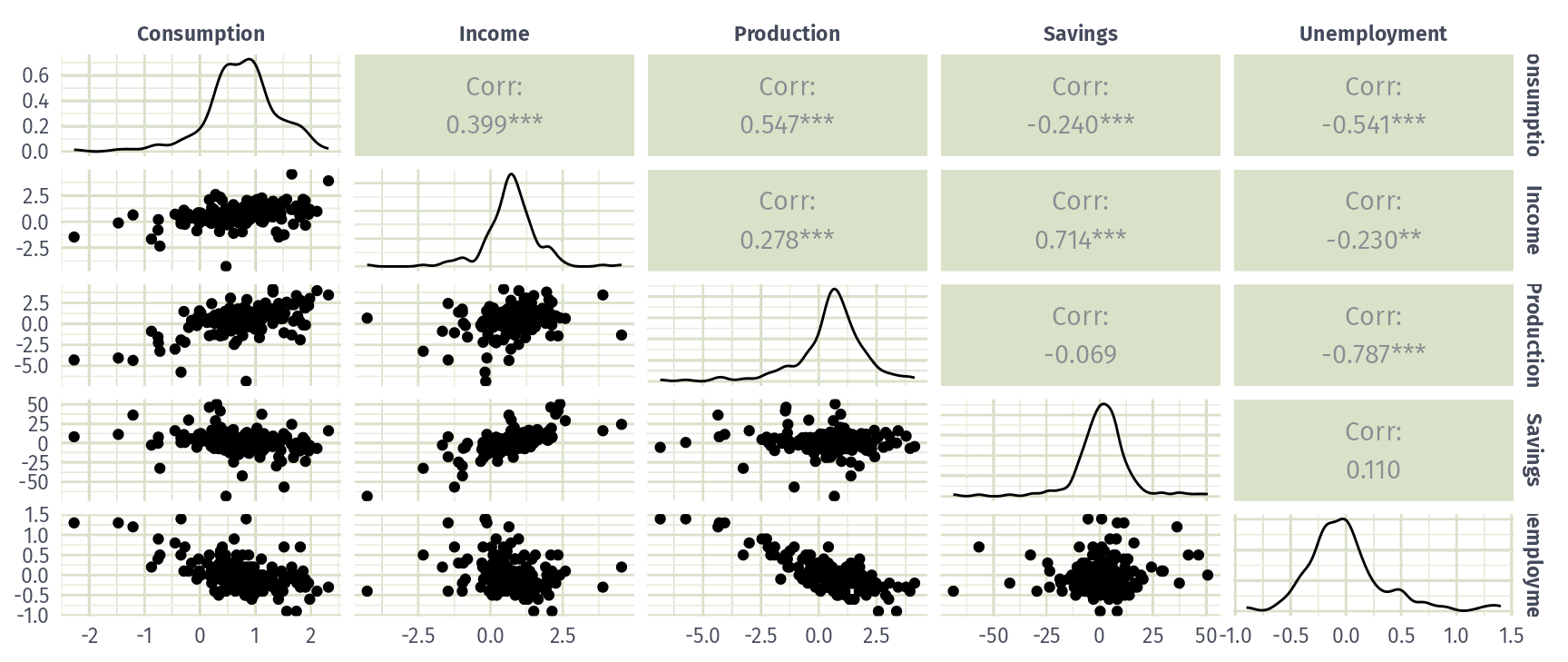

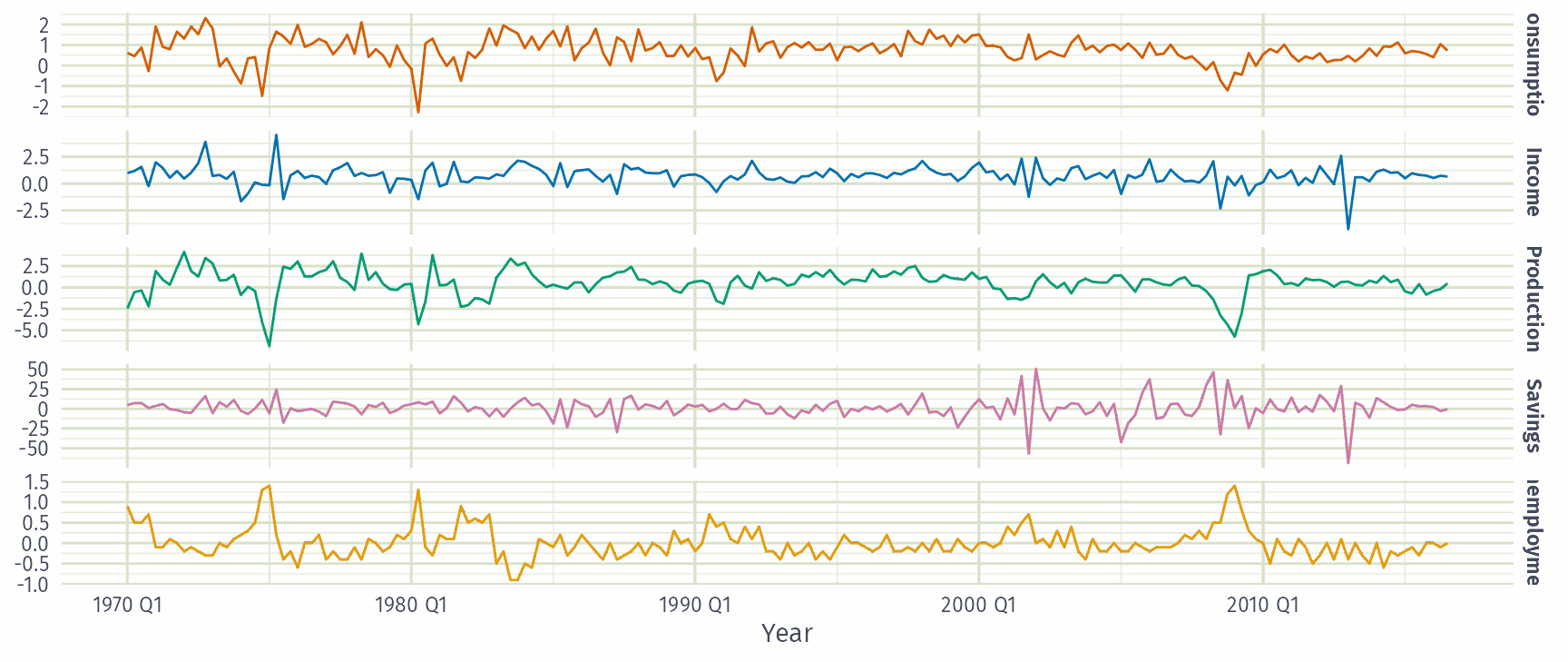

Example: US consumption expenditure

Example: US consumption expenditure

Example: US consumption expenditure

fit_full <- us_change |>
  model(lm = TSLM(Consumption ~ Income + Production + Unemployment + Savings))
report(fit_full)

Series: Consumption
Model: TSLM

Residuals:
   Min     1Q Median     3Q    Max
-0.883 -0.176 -0.037  0.153  1.206

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept)   0.26729    0.03721    7.18  1.7e-11 ***
Income        0.71448    0.04219   16.93  < 2e-16 ***
Production    0.04589    0.02588    1.77    0.078 .
Unemployment -0.20477    0.10550   -1.94    0.054 .
Savings      -0.04527    0.00278  -16.29  < 2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.329 on 182 degrees of freedom
Multiple R-squared: 0.754,  Adjusted R-squared: 0.749
F-statistic:  139 on 4 and 182 DF, p-value: <2e-16

Interpretation

Each coefficient holds the other predictors fixed.

Production and unemployment are borderline (\(p \approx 0.05\) to \(0.08\)).

\(\bar{R}^2 = 0.75\), far above income alone.

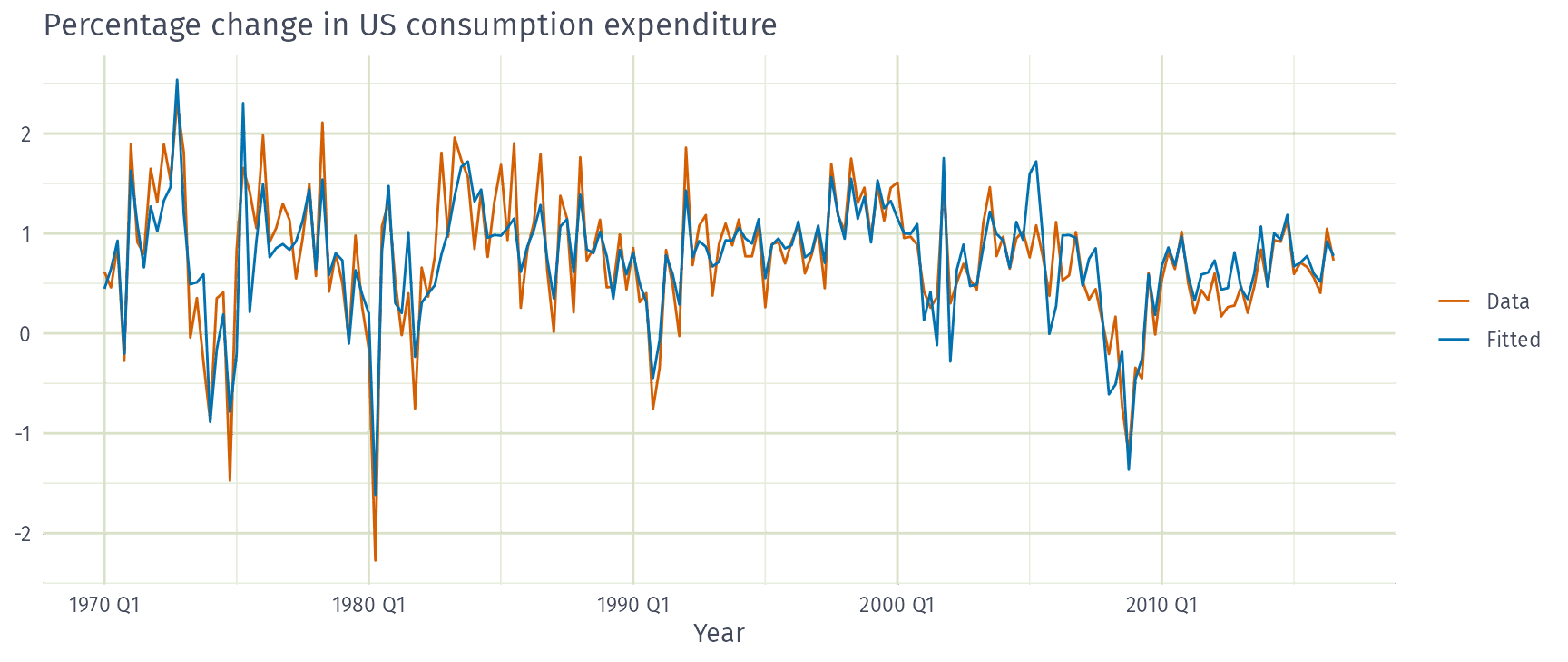

Example: US consumption expenditure

Example: US consumption expenditure

Evaluating the regression model

Assumptions for forecasting

For forecasting purposes, we require the following assumptions:

• \(\varepsilon_t\) are uncorrelated and zero mean

• \(\varepsilon_t\) are uncorrelated with each \(x_{j,t}\).

It is useful to also have \(\varepsilon_t \sim \text{N}(0,\sigma^2)\) when producing prediction intervals or doing statistical tests.

Residual diagnostics

There are a series of plots that should be produced in order to check different aspects of the fitted model and the underlying assumptions.

1. check if residuals are uncorrelated using ACF
2. Check if residuals are normally distributed

Ljung-Box test

Test whether whole set of \(r_{k}\) values is significantly different from zero set.

\(\displaystyle Q = T(T+2) \sum_{k=1}^\ell (T-k)^{-1}r_k^2\) \(\qquad\) where \(\ell=\) max lag and \(T=\) # observations

• If each \(r_k\) close to zero, \(Q\) will be small.
• If some \(r_k\) values large (\(+\) or \(-\)), \(Q\) will be large.
• Suggested lags: \(\ell=10\) for non-seasonal data, \(\ell=2m\) for seasonal data (but at most \(T/5\)).
• If data are WN and \(T\) large, \(Q \sim \chi^2\) with \(\ell\) degrees of freedom.
• For residuals of a model with \(K\) estimated parameters, use \(\ell - K\) degrees of freedom (dof argument).

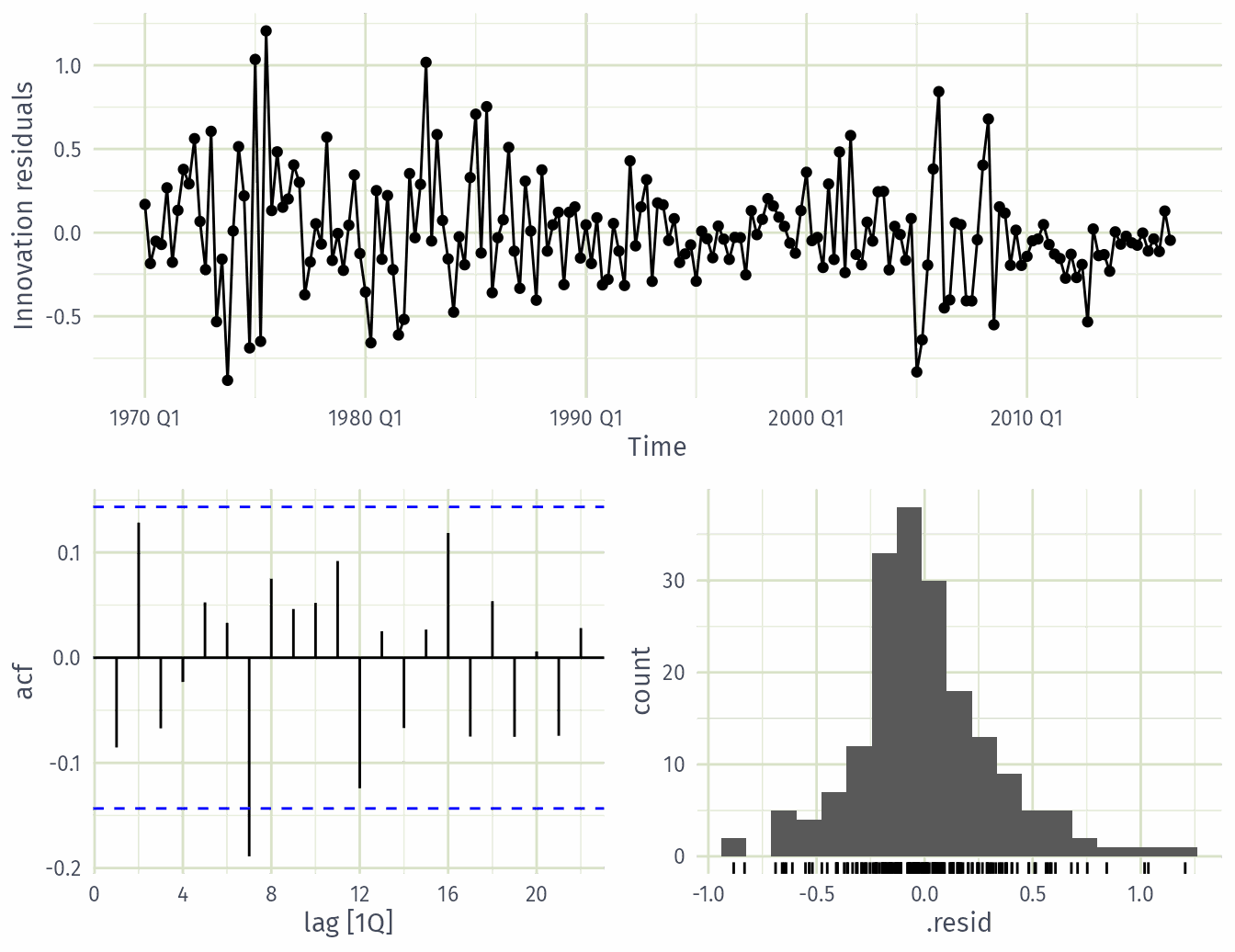

Example: US consumption expenditure

gg_tsresiduals(fit_full)

Interpretation

A few ACF spikes outside the bounds (Ljung-Box \(p = 0.073\)), and a slightly skewed histogram.

Not perfect, but fine for forecasting. Intervals may be slightly off.

Residual scatterplots

Useful for spotting outliers and whether the linear model was appropriate.

• Scatterplot of residuals \(e_t\) against each predictor \(x_{j,t}\).

• Scatterplot residuals against the fitted values \(\hat y_t\)

• Expect to see scatterplots resembling a horizontal band with no values too far from the band and no patterns such as curvature or increasing spread.

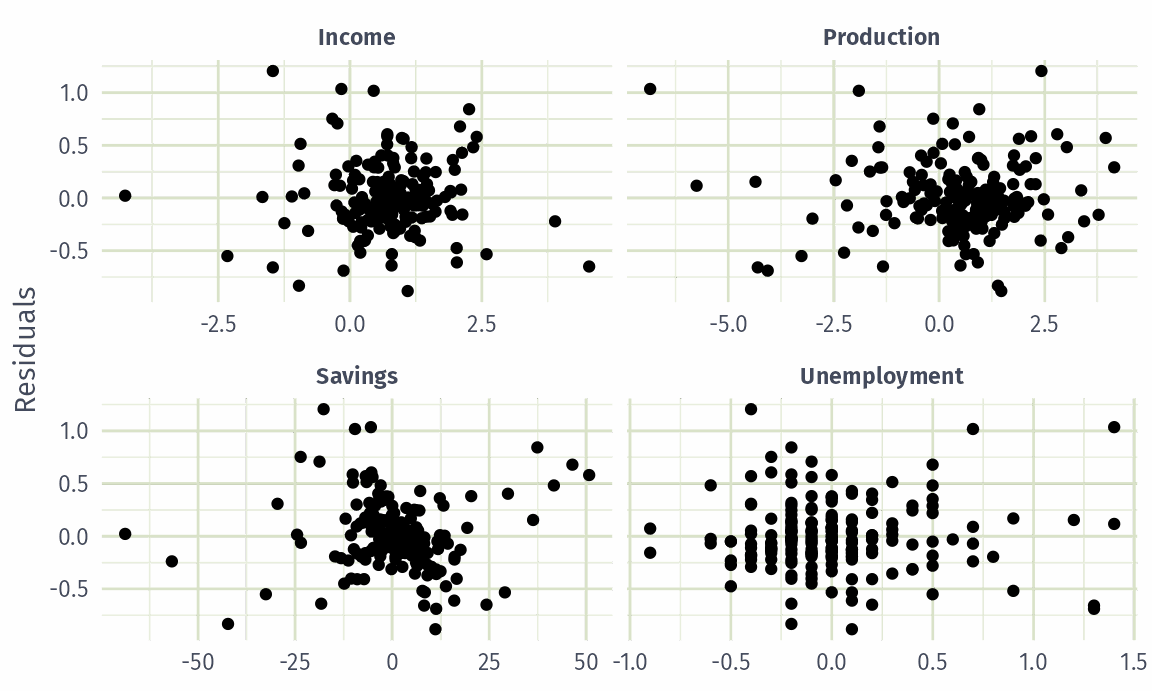

Example: US consumption expenditure

us_change |>
  left_join(residuals(fit_full), by = "Time") |>
  pivot_longer(c(Income, Production, Savings, Unemployment)) |>
  ggplot(aes(x = value, y = .resid)) +
  geom_point() +
  facet_wrap(vars(name), scales = "free_x") +
  labs(x = NULL, y = "Residuals")

Interpretation

No curvature or fanning: linear terms look adequate.

Residual patterns

• If a plot of the residuals vs any predictor in the model shows a pattern, then the relationship is non-linear.

• If a plot of the residuals vs any predictor not in the model shows a pattern, then the predictor should be added to the model.

• If a plot of the residuals vs fitted values shows a pattern, then there is heteroscedasticity in the errors. (Could try a transformation.)

Selecting predictors

Comparing regression models

Computer output for regression will always give the \(R^2\) value. This is a useful summary of the model.

• It is equal to the square of the correlation between \(y\) and \(\hat y\).

• It is often called the “coefficient of determination”.

• It can also be calculated as follows: \(R^2 = \frac{\sum(\hat{y}_t - \bar{y})^2}{\sum(y_t-\bar{y})^2}\)

• It is the proportion of variance accounted for (explained) by the predictors.

Adding predictors

Adding a useless predictor to a regression model makes R²…

• Increase or stay the same
• Decrease
• Change unpredictably

Comparing regression models

However …

• \(R^2\) does not penalise model size.

• Adding any variable tends to increase the value of \(R^2\), even if that variable is irrelevant.

To overcome this problem, we can use adjusted \(R^2\):

\[ \bar{R}^2 = 1-(1-R^2)\frac{T-1}{T-k-1} \] where \(k=\) no. predictors and \(T=\) no. observations.

Maximising \(\bar{R}^2\) is equivalent to minimising \(\hat\sigma^2\).

\(\displaystyle \hat{\sigma}^2 = \frac{1}{T-k-1}\sum_{t=1}^T e_t^2\)

Cross-validation

1. Remove observation \(t\) from the data set, and fit the model using the remaining data. Then compute the error for the omitted observation

2. Repeat step 1 for \(t=1,...,T\)

3. Compute the MSE from errors obtained in 1. We shall call this the CV

Akaike’s Information Criterion

\[ \text{AIC} = -2\log(L) + 2(k+2) \]

where \(L\) is the likelihood and \(k\) is the number of predictors in the model.

• This is a penalised likelihood approach.
• Minimising the AIC tends to give the best model for prediction.
• \(\bar{R}^2\) tends to select too many predictors, so prefer CV, AIC or AICc.
• Minimising the AIC is asymptotically equivalent to minimising MSE via leave-one-out cross-validation.

Corrected AIC

For small values of \(T\), the AIC tends to select too many predictors, and so a bias-corrected version of the AIC has been developed.

\[ \text{AIC}_{\text{C}} = \text{AIC} + \frac{2(k+2)(k+3)}{T-k-3} \]

As with the AIC, the AIC\(_{\text{C}}\) should be minimised.

Choosing regression variables

Best subsets regression

• Fit all possible regression models using one or more of the predictors.

• Choose the best model based on one of the measures of predictive ability (CV, AIC, AICc).

Choosing regression variables

Backwards stepwise regression

• Start with a model containing all variables.
• Try subtracting one variable at a time. Keep the model if it has lower CV or AICc.
• Iterate until no further improvement.
• You can also do forward stepwise

Example: candidate models

Start from the full model, then drop one predictor at a time.

fit_candidates <- us_change |>
  model(
    full = TSLM(Consumption ~ Income + Production + Unemployment + Savings),
    no_income = TSLM(Consumption ~ Production + Unemployment + Savings),
    no_production = TSLM(Consumption ~ Income + Unemployment + Savings),
    no_unemployment = TSLM(Consumption ~ Income + Production + Savings),
    no_savings = TSLM(Consumption ~ Income + Production + Unemployment)
  )

Example: candidate models

Which predictor can we most afford to drop from the full model?

• Income
• Production
• Unemployment
• Savings

Example: comparing candidate models

glance(fit_candidates) |>
  select(.model, adj_r_squared, CV, AIC, AICc) |>
  arrange(AICc)

# A tibble: 5 × 5
  .model          adj_r_squared    CV   AIC  AICc
  <chr>                   <dbl> <dbl> <dbl> <dbl>
1 full                    0.749 0.116 -409. -409.
2 no_production           0.746 0.116 -408. -408.
3 no_unemployment         0.745 0.118 -407. -407.
4 no_savings              0.386 0.278 -243. -243.
5 no_income               0.356 0.293 -234. -234.

Interpretation

The full model has the lowest AICc and CV, so keep all four predictors.

Dropping production is almost as good; dropping income or savings is much worse.

Forecasting with regression

Ex-ante versus ex-post forecasts

• Ex ante forecasts are made using only information available in advance.
  • require forecasts of predictors
• Ex post forecasts are made using later information on the predictors.
  • useful for studying behaviour of forecasting models.
• trend, seasonal and calendar variables are all known in advance, so these don’t need to be forecast.

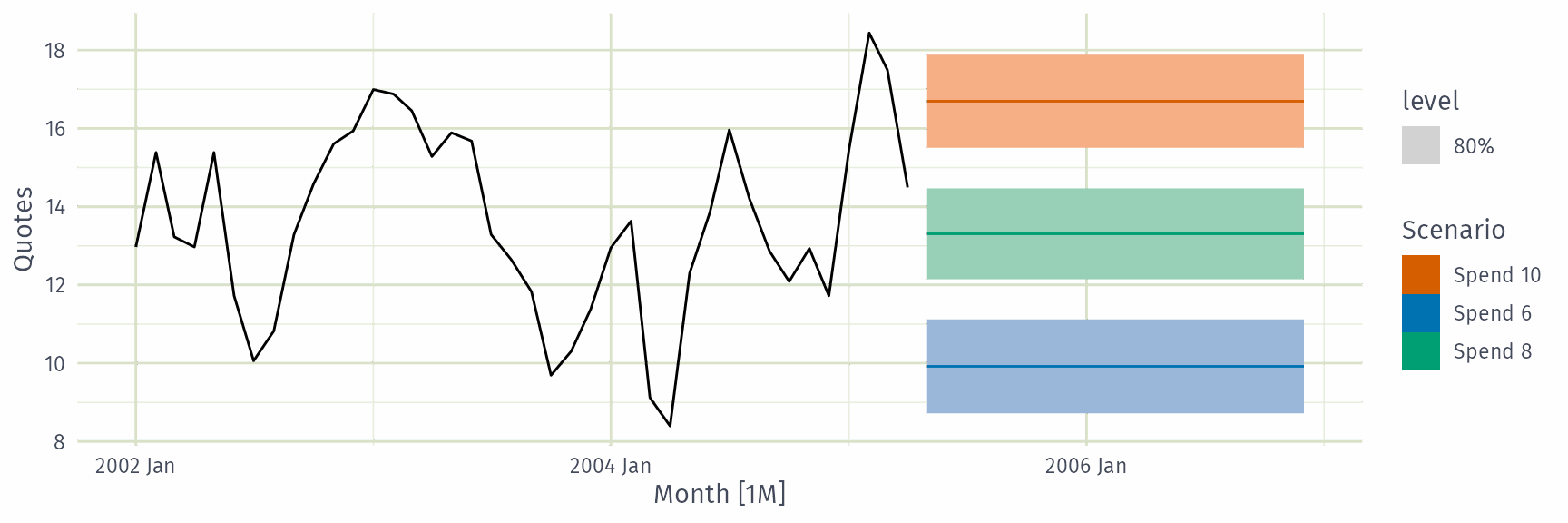

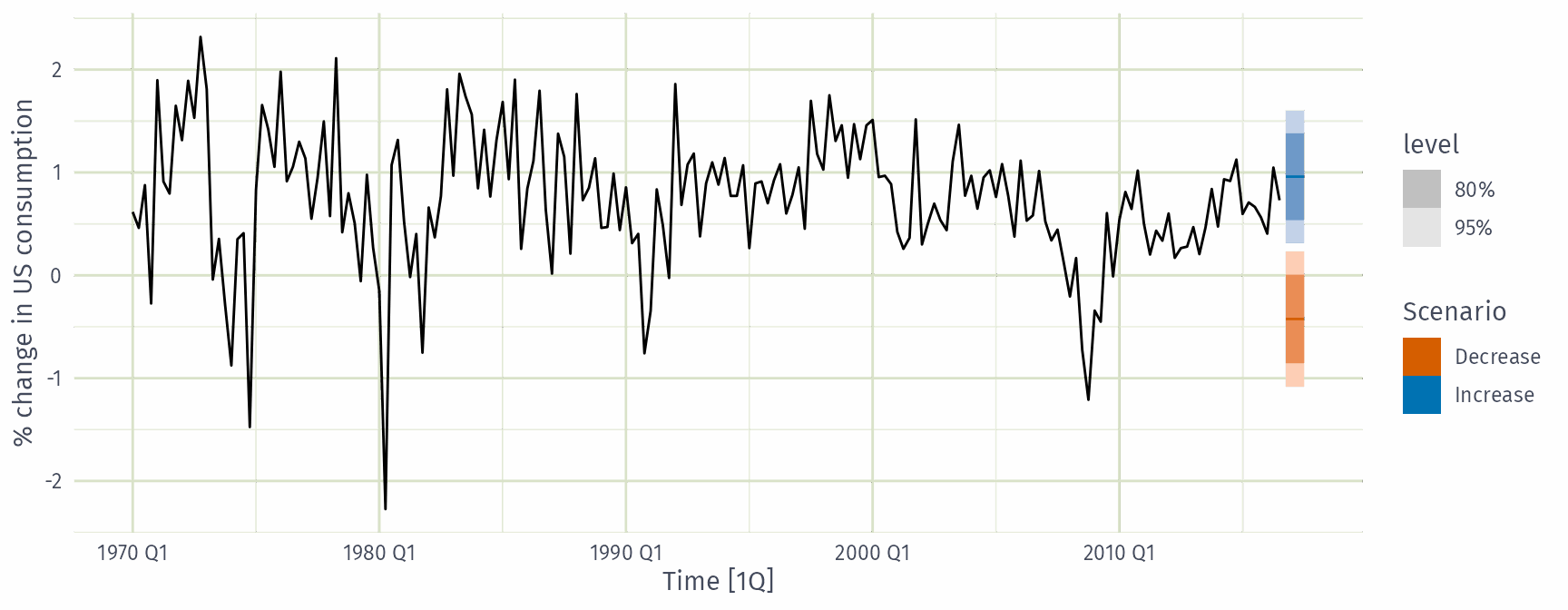

Scenario based forecasting

• Assumes possible scenarios for the predictor variables
• Prediction intervals for scenario based forecasts do not include the uncertainty associated with the future values of the predictor variables.

Building a predictive regression model

• If getting forecasts of predictors is difficult, you can use lagged predictors instead.

\[ y_t = \beta_0+\beta_1x_{1,t-h}+\dots+\beta_kx_{k,t-h}+\varepsilon_{t}. \]

• A different model for each forecast horizon \(h\).

US Consumption

future_scenarios <- scenarios(
  Increase = new_data(us_change, 4) |>
    mutate(Income = 1, Savings = 0.5, Unemployment = 0, Production = 0),
  Decrease = new_data(us_change, 4) |>
    mutate(Income = -1, Savings = -0.5, Unemployment = 0, Production = 0),
  names_to = "Scenario"
)
fc_scenarios <- forecast(fit_full, new_data = future_scenarios)

US Consumption

us_change |> autoplot(Consumption) +
  autolayer(fc_scenarios) +
  labs(y = "% change in US consumption")

Interpretation

Scenarios shift the point forecasts. The intervals ignore uncertainty in the future predictors.

Correlation, causation and forecasting

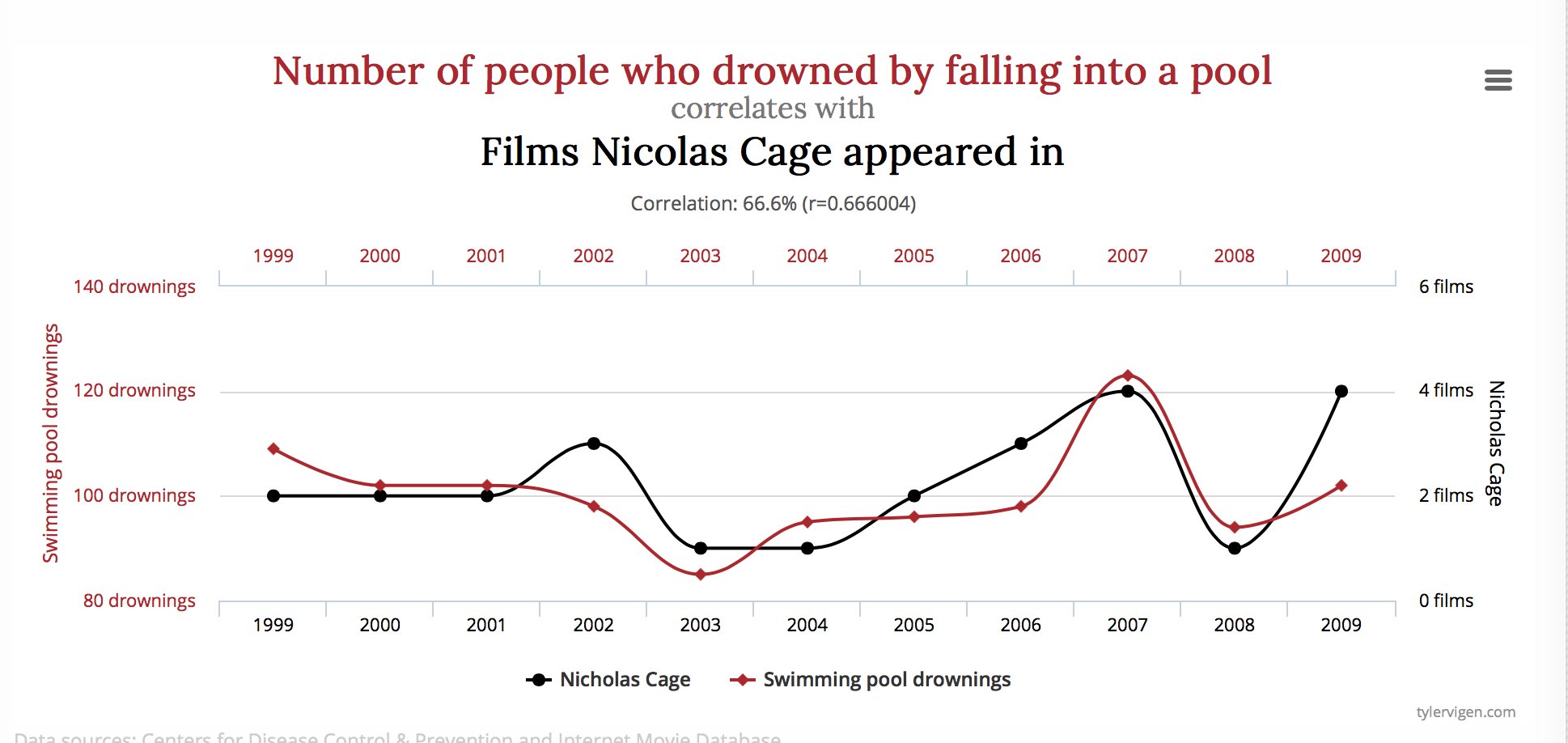

Correlation does not imply causation

Check out https://www.tylervigen.com/spurious-correlations

Correlation and forecasting

Ice-cream sales are strongly correlated with drownings. Are ice-cream sales useful for forecasting drownings?

• Yes
• No

Correlation is not causation

• When \(x\) is useful for predicting \(y\), it is not necessarily causing \(y\).

• e.g., predict number of drownings \(y\) using number of ice-creams sold \(x\).

• Correlations are useful for forecasting, even when there is no causality.

• Better models usually involve causal relationships (e.g., temperature and number of swimmers to predict drownings).

Multicollinearity

In regression analysis, multicollinearity occurs when:

• Two predictors are highly correlated (i.e., the correlation between them is close to \(\pm1\)).
• A linear combination of some of the predictors is highly correlated with another predictor.
• A linear combination of one subset of predictors is highly correlated with a linear combination of another subset of predictors.

Multicollinearity

If multicollinearity exists…

• coefficient estimates become unstable and have large standard errors
• don’t rely on the \(p\)-values to determine significance.
• there is no problem with model predictions provided the predictors used for forecasting are within the range used for fitting.
• omitting variables can help.
• combining variables can help.

Outliers and influential observations

Things to watch for

• Outliers: observations that produce large residuals.
• Influential observations: removing them would markedly change the coefficients. (Often outliers in the \(x\) variable).
• Lurking variable: a predictor not included in the regression but which has an important effect on the response.
• Points should not normally be removed without a good explanation of why they are different.

Modern regression models

• Suppose we had 44 predictors instead of 4.
  • That gives \(2^{44} \approx 18\) trillion possible models!
• Best subsets and stepwise search become infeasible.
• Shrinkage methods (lasso, ridge, elastic net) handle this, but are beyond this workshop.

Some useful predictors for regression models

Dummy variables

If a categorical variable takes only two values (e.g., “Yes” or “No”), then an equivalent numerical variable can be constructed taking value 1 if yes and 0 if no. This is called a dummy variable.

Dummy variables

If there are more than two categories, then the variable can be coded using several dummy variables (one fewer than the total number of categories).

Beware of the dummy variable trap!

• Using one dummy for each category gives too many dummy variables!

• The regression will then be singular and inestimable.

• Either omit the constant, or omit the dummy for one category.

• The coefficients of the dummies are relative to the omitted category.

Uses of dummy variables

Seasonal dummies

• For quarterly data: use 3 dummies
• For monthly data: use 11 dummies
• For daily data: use 6 dummies

Outliers

• If there is an outlier, you can use a dummy variable to remove its effect.

Public holidays

• For daily data: if it is a public holiday, dummy=1, otherwise dummy=0.

Intervention variables

Spikes

• Equivalent to a dummy variable for handling an outlier.

Steps

• Variable takes value 0 before the intervention and 1 afterwards.

Change of slope

• Variables take values 0 before the intervention and values \(\{1,2,3,\dots\}\) afterwards.

• this could also be handled using a piecewise trend, trend(knots = ...)

Special events as dummies

• Christmas Eve: if Christmas Eve, \(v_t=1\), \(v_t=0\) otherwise
• New year’s Day: if New year’s Day, \(v_t=1\), \(v_t=0\) otherwise.
• and more: Ramadan and Chinese new year, school holiday, etc

Interactions

For example, sometimes the effect of a particular event might be different if it is on a weekend or a week day or its effect might be different in each shift:

• you need to introduce an interaction variable
• in a model formula, v1 * v2 includes both main effects and their interaction v1:v2

Lagged predictors

The model includes present and past values of the predictor: \(x_t,x_{t-1},x_{t-2},\dots.\)

\[ y_{t} = \beta_0 + \gamma_{0} x_{t} + \gamma_{1} x_{t-1} + \dots + \gamma_{k} x_{t-k} + \varepsilon_{t} \]

• \(x\) can influence \(y\), but \(y\) is not allowed to influence \(x\).

Lagged predictors

• Lagged values of a predictor:
  • Create new variables by shifting the existing variable backwards

Example: \(x\) is advertising which has a delayed effect

\[\begin{aligned} x_{1} &= \text{advertising for previous month;} \\ x_{2} &= \text{advertising for two months previously;} \\ & \vdots \\ x_{m} &= \text{advertising for $m$ months previously.} \end{aligned}\]

Example: Insurance quotes and TV adverts

insurance

# A tsibble: 40 x 3 [1M]
      Month Quotes TVadverts
      <mth>  <dbl>     <dbl>
 1 2002 Jan   13.0      7.21
 2 2002 Feb   15.4      9.44
 3 2002 Mar   13.2      7.53
 4 2002 Apr   13.0      7.21
 5 2002 May   15.4      9.44
 6 2002 Jun   11.7      6.42
 7 2002 Jul   10.1      5.81
 8 2002 Aug   10.8      6.20
 9 2002 Sep   13.3      7.59
10 2002 Oct   14.6      8.00
# ℹ 30 more rows

Example: Insurance quotes and TV adverts

Example: Insurance quotes and TV adverts

Example: Insurance quotes and TV adverts

fit_lags <- insurance |>
  # Restrict data so models use same fitting period
  mutate(Quotes = c(NA, NA, NA, Quotes[4:40])) |>
  model(
    lag0 = TSLM(Quotes ~ TVadverts),
    lag1 = TSLM(Quotes ~ TVadverts + lag(TVadverts)),
    lag2 = TSLM(Quotes ~ TVadverts + lag(TVadverts) + lag(TVadverts, 2)),
    lag3 = TSLM(Quotes ~ TVadverts + lag(TVadverts) + lag(TVadverts, 2) +
      lag(TVadverts, 3))
  )

Example: Insurance quotes and TV adverts

How many months of lagged TV advertising should the model include?

• 0
• 1
• 2
• 3

Example: Insurance quotes and TV adverts

glance(fit_lags) |>
  select(.model, adj_r_squared, CV, AIC, AICc)

# A tibble: 4 × 5
  .model adj_r_squared    CV    AIC   AICc
  <chr>          <dbl> <dbl>  <dbl>  <dbl>
1 lag0           0.866 0.864 -3.38  -2.65
2 lag1           0.865 0.901 -2.17  -0.919
3 lag2           0.861 0.958 -0.208  1.73
4 lag3           0.859 0.995  1.35   4.15

Interpretation

No lag (lag0) has the lowest AICc and CV: quotes respond to advertising in the same month.

Example: Insurance quotes and TV adverts

# Re-fit to all data
fit_adverts <- insurance |>
  model(TSLM(Quotes ~ TVadverts))
report(fit_adverts)

Series: Quotes
Model: TSLM

Residuals:
   Min     1Q Median     3Q    Max
-2.327 -0.543 -0.238  0.754  1.588

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   -0.240      0.901   -0.27     0.79
TVadverts      1.693      0.109   15.56   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.895 on 38 degrees of freedom
Multiple R-squared: 0.864,  Adjusted R-squared: 0.861
F-statistic:  242 on 1 and 38 DF, p-value: <2e-16

Interpretation

\(\hat{y}_t = -0.24 + 1.69 x_t\): each extra unit of spend brings about 1.7 more quotes that month.

Residuals are strongly autocorrelated (Ljung-Box \(p < 0.001\)), so prediction intervals will be too narrow.

Example: Insurance quotes and TV adverts

future_adverts <- scenarios(
  `Spend 10` = new_data(insurance, 20) |> mutate(TVadverts = 10),
  `Spend 8` = new_data(insurance, 20) |> mutate(TVadverts = 8),
  `Spend 6` = new_data(insurance, 20) |> mutate(TVadverts = 6),
  names_to = "Scenario"
)
insurance |> autoplot(Quotes) +
  autolayer(forecast(fit_adverts, future_adverts), level = 80)

Lead predictors

Sometimes \(y_t\) responds to a change in \(x\) before it happens, because the change is anticipated. Then \(y_t\) depends on future values \(x_{t+1}, x_{t+2}, \dots\)

\[ y_{t} = \beta_0 + \gamma_{0} x_{t} + \gamma_{1} x_{t+1} + \dots + \gamma_{k} x_{t+k} + \varepsilon_{t} \]

• Create lead values by shifting the existing variable forwards with lead()
• e.g. sales \(y_t\) rise before an announced tax increase \(x_t\) takes effect
• Only usable for forecasting when the future \(x\) is known in advance (e.g. announced)
